One ton IBC barrel solvent filling machine characteristics
Applicant to aditivities, solvent, liquids one ton barrel, IBC barrel, bulk barrel filling machine.
* explosion-proof level: EXdiaIIBT4(optional);
* automatic correction liquid drop, always follow the target, the filling results out-of-tolerance alarm;
* filling nozzle manufactured SUS304/316;
* will display a prompt a barrel filling is complete, the total weight and number of times, and can be an external computer;
* artificial put barrels pounds on the stage, on the barrel mouth after press the start key can be different filling liquid products;
* use insert filling head (manual regulation), avoid the material fly light on the bucket, affect the outer packing;
* a two-part size materials to ensure the accuracy of automatic filling way;
* start filling automatically deduct weight function, weight of pounds on reset;
*, after the completion of filling machine can only artificial bucket will launch pound;
* if encounter emergency press the emergency stop button to remove the filling;
Ton barrel filling machine basic parameters
* Filling capacity: 1000 kg
* sense of minimum quantity: 100 g
* filling range: 10-250 kg
* filling error: + / - 0.1% (depending on the velocity and pulse power)
* use power: AC220/50 hz
* use air: 0.5 Mpa
* use temperature: - 40 ℃ to 170 ℃
Model | |
Suitable material | Liquid like coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc |
Weighing form | Filling above level (liquid without foam) Filling under level (liquid with foam) |
Filling capacity | 200kg*4 (pallet) |
Accuracy | ≤ 0.1% |
Filling speed | 10-12 pallet/hour |
Barrel form | Four Drums(one pallet) |
Gas power | 0.5MPa |
Work environment | Temperature ：-20℃～45℃relative humidity：95%（none dew） |
voltage | AC 110V/220V, 50/60Hz, 10A |
Max power | 1KW |
Filling mouth material | SUS304/SUS316 |
Platform size(mm) | 1300*1300 |
Option | Stainless steel 304 conveyor roller |

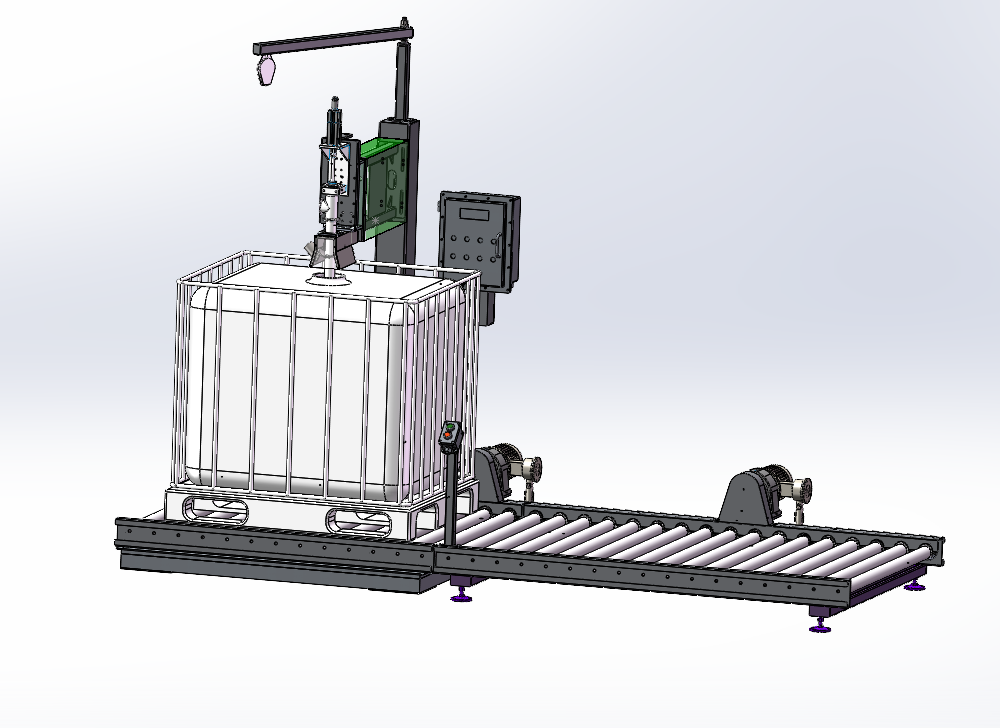

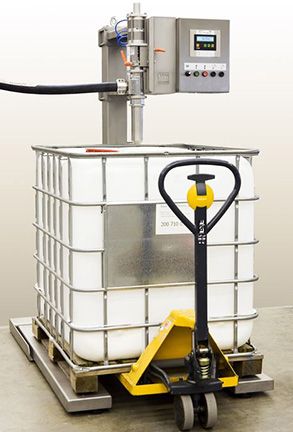

Simple model(only can fill ton barrel)

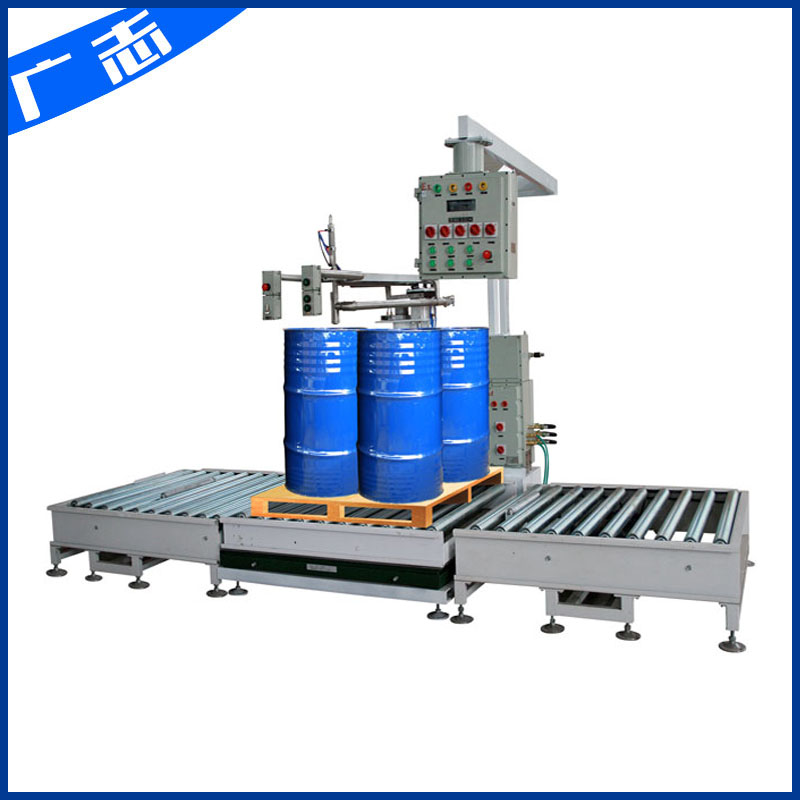

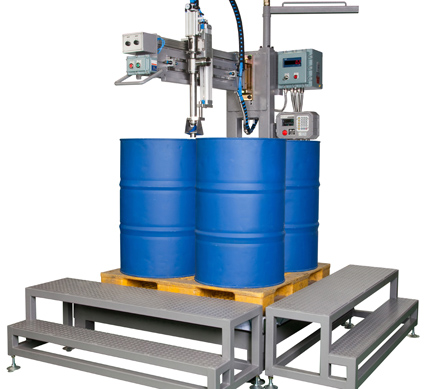

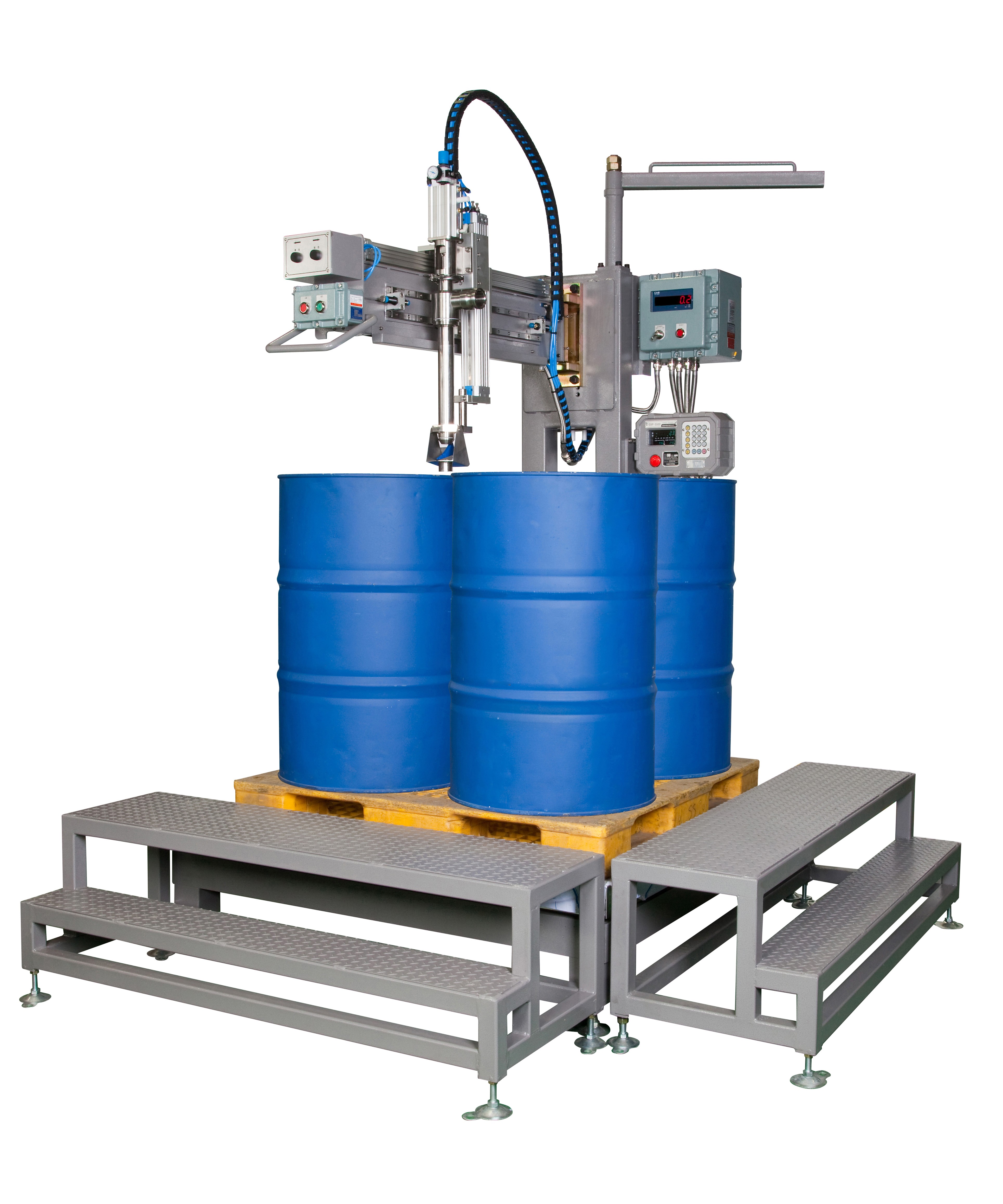

Complicate model(can fill 208L drums& 1 ton barrel)
Roller optional:
