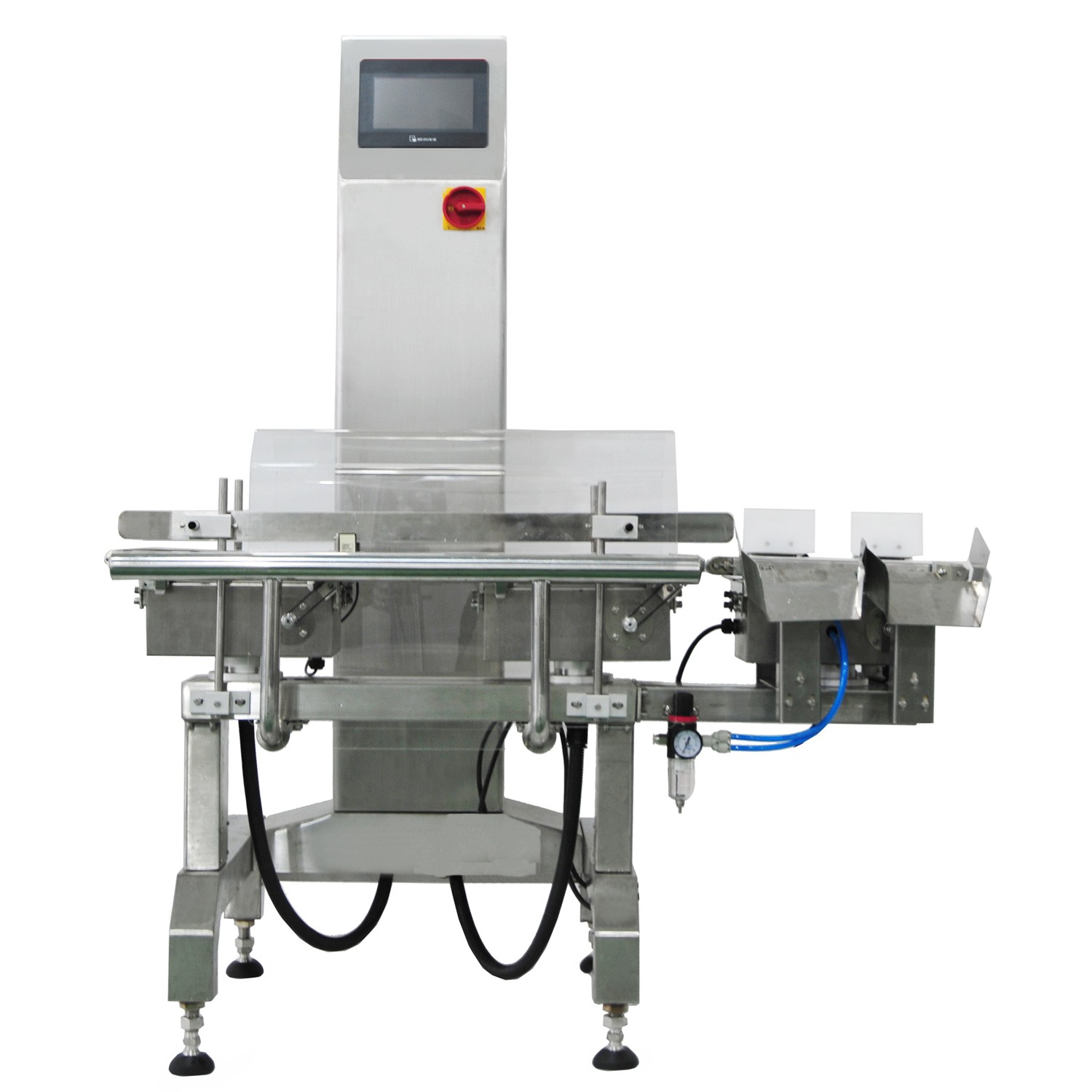

5-300g small pocket small box check weigher
Capacity: 5-300g
Speed: 160 bags/min
Accuracy: +- 0.3g
Eliminate device: blow/push
High-sensitivity checkweigher by DSP Technology
Waterproof type
- To conforming the waterproof structure of IP65 Compliance. ( IP67 is options )
General-Purpose
- All products are design to be applicable to various environments, based on rich field experiences. ( option device can be installed easily. )
Cleanliness
- Easy cleaning by the open frame design and circular pipe structure.
- Tool-Free Type
Speed-changeable type
- High-responsiveness by the variable speed device.
High performance
- Using the high speed & precision digital filters by DSP technology.
| Display | FSTN 6 inch LCD Touch Display |
| Operation Method | Touch Screen Display |
| Weigh Sensor | Double Beam Load Cell |
| Zero Tracking | During Operation : Continuous Automatic Dynamic Compensation |
| During Standby : Manual Compensation by Key | |
| Preset of Products | 50 Items |
| Protection Class | IP 65 Compliance [ IP 67 Option ] |
| Environments | -5°C ~ 40°C ( Variation Not to Exceed 5°C/h to Accuracy ) |
| Relative Humidity 30% ~ 85%, No Condensation) | |
| Power Requirements | 200 ~ 220 VAC ± 10%, Single-Phase, 60Hz / 50Hz |
| Material | All Stainless Steel |
| Option | PC Interface( RS232C, RS422 Protocol ), Printer, USB 2.0 memory |
