CAS Single point BCL loadcells (60kgf-200kgf)
CAS load cell, BCL weighing scale load cell models: BCL-60L, BCL-100L, BCL-150L, BCL-200L
⊙FEATURES
Low cost Low-profile Off center compensated Protection class IP65
⊙Material
Anodized Aluminum
⊙Mounting
Socket-head cap screw M6 1.0(10.9)
Tightening torque: 14Nm
⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket
⊙Maximum Platform Size
400 x 400mm
| Model | BCL | ||
| Rated Capacity (kgf) | 6,10,15,20,30,35,50,60,100,150,200 | ||
| Accuracy Class | D3 | C3 | |
| Combined Error (% R.O) | ≤0.03 | ≤0.025 | |
| Creep for 30 min. (% R.O) | ≤0.03 | ≤0.017 | |
| Excitation | Recommended (V) | 10 | |
| Maximum (V) | 15 | ||
| Compensated Temerature Range(?C) | -10~+40 | ||
| Operating Temperature Range(?C) | -20~+70 | ||
| Material & Plate | Anodized Aluminum | ||

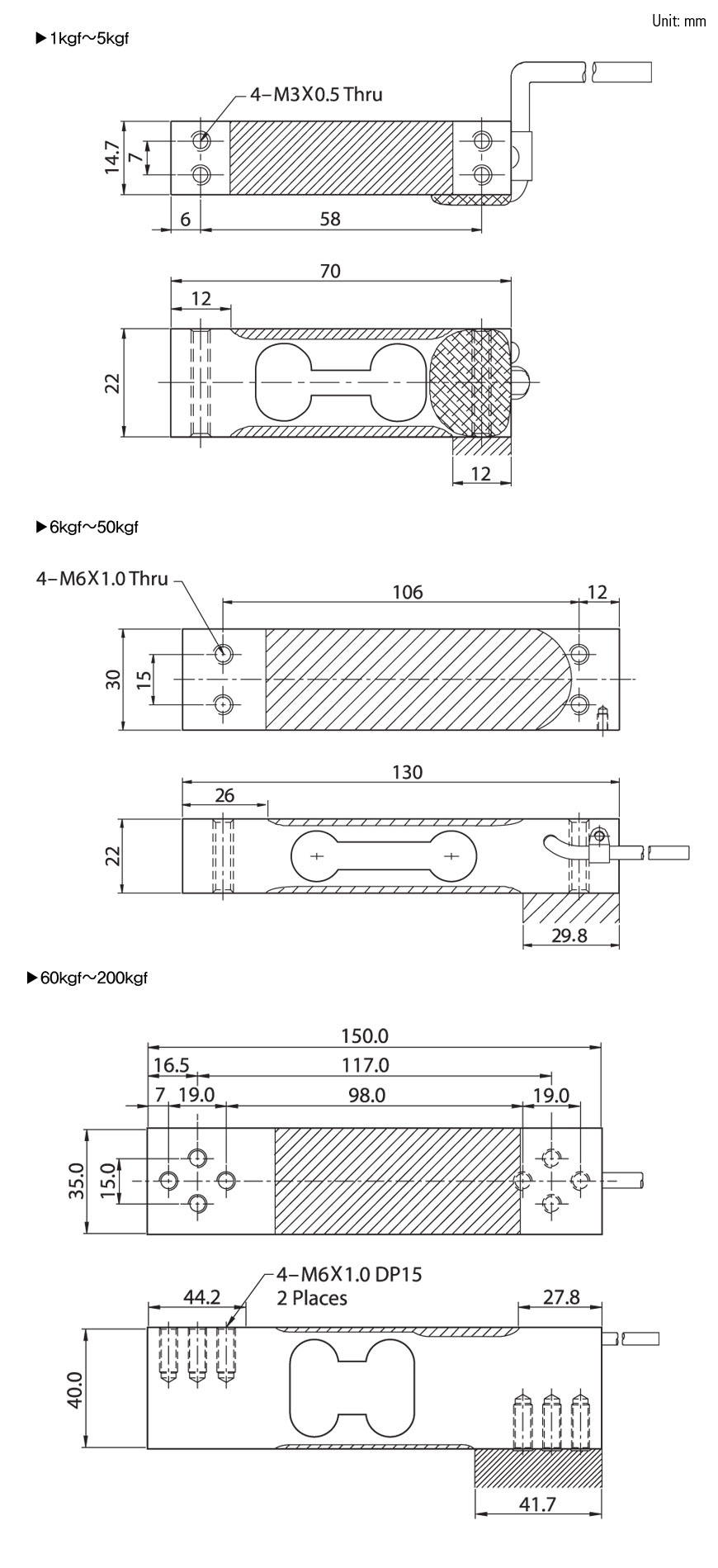

![BCL[1-5].jpg](../upload/201704/1491904677152904.jpg "1491904677152904.jpg")
