CAS single point BCL loadcells (6kgf-30kgf)CAS load cell, BCL weighing scale Single point load cell models: BCL-6L, BCL-10L, BCL-15L, BCL-20L, BCL-30L, BCL-35L, BCL-50L.⊙FEATURESLow costLow-profilePTB
CAS single point BCL loadcells (6kgf-30kgf)
CAS load cell, BCL weighing scale Single point load cell models: BCL-6L, BCL-10L, BCL-15L, BCL-20L, BCL-30L, BCL-35L, BCL-50L.
⊙FEATURES
Low cost
Low-profile
PTB and OIML C3 approved(OIML R60)
Off center compensated(OIML R76)
Protection class IP65
⊙OPTIONS
6-wires connection
OIML C3 approved
⊙Material
Anodized Aluminum
⊙Mounting
Socket-head cap screw M6 1.0(10.9)
Tightening torque: 14Nm
⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket
⊙Maximum Platform Size
300 300mm
| Model | BCL | ||
| Rated Capacity (kgf) | 6,10,15,20,30,35,50,60,100,150,200 | ||
| Accuracy Class | D3 | C3 | |
| Combined Error (% R.O) | ≤0.03 | ≤0.025 | |
| Creep for 30 min. (% R.O) | ≤0.03 | ≤0.017 | |
| Excitation | Recommended (V) | 10 | |
| Maximum (V) | 15 | ||
| Compensated Temerature Range(?C) | -10~+40 | ||
| Operating Temperature Range(?C) | -20~+70 | ||
| Material & Plate | Anodized Aluminum | ||

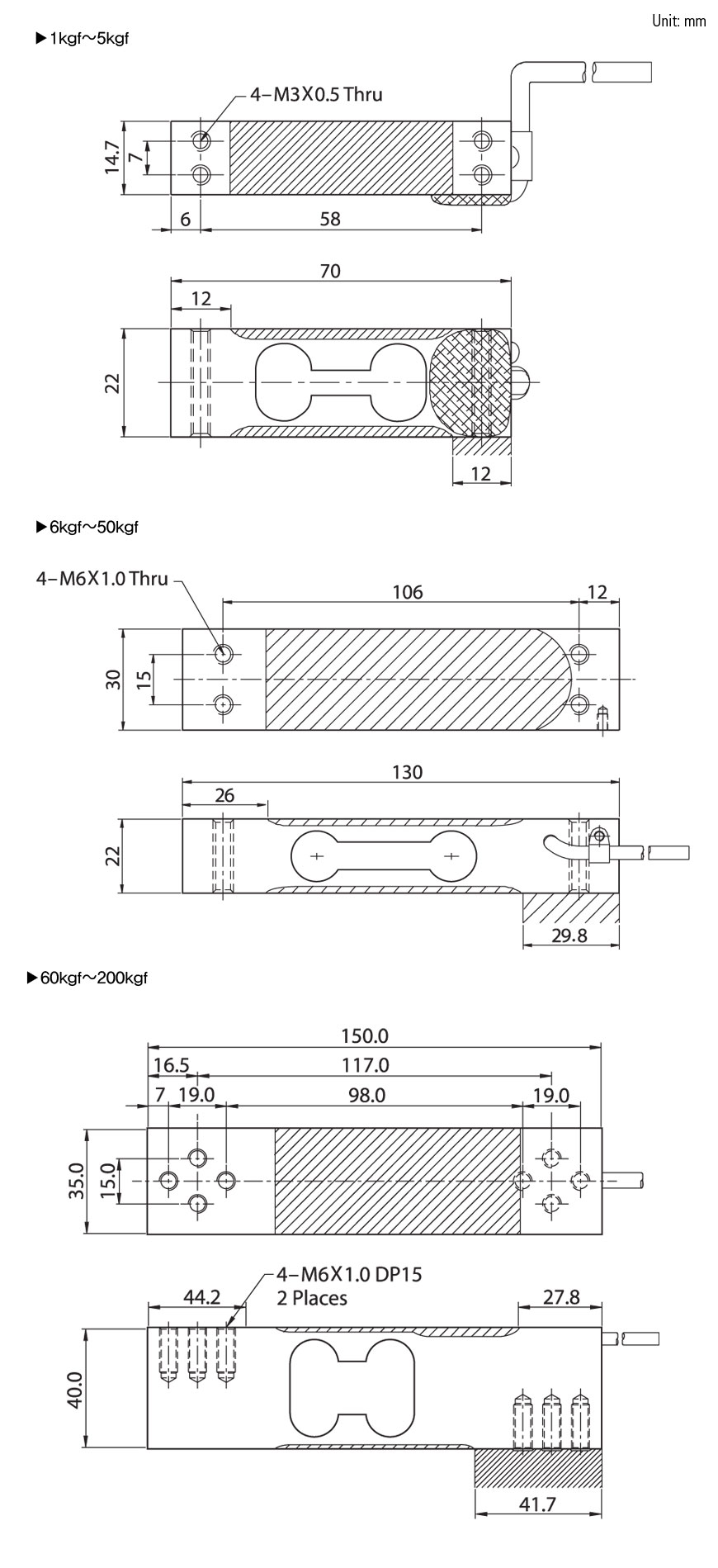

![BCL[1-5].jpg](../upload/201704/1491903306193198.jpg "1491903306193198.jpg")
