CAS BCM scale load cell
CAS BCM scale load cellCAS load cell, BCM Single point load cell models: BCM-50L, BCM-75L, BCM-100L, BCM-150L, BCM-200L, BCM-300L, BCM-500L, BCM-750L.⊙FEATURESNTEP III 5,000S approved(Handbook 44
- Brand:： CAS
- Model:： BCM
CAS BCM scale load cell
CAS load cell, BCM Single point load cell models: BCM-50L, BCM-75L, BCM-100L, BCM-150L, BCM-200L, BCM-300L, BCM-500L, BCM-750L.
⊙FEATURES
NTEP III 5,000S approved(Handbook 44)
OIML C3 approved(OIML R60)
Off center compensated(OIML R76)
Protection class IP65
⊙OPTIONS
NTEP III 5,000S approved(A5)
OIML C3 approved(C3)
6-wires connection
⊙Material
Anodized Aluminum
⊙Mounting
Socket-head cap screw 5/16-18UNC(10.9)
Tightening torque: 29Nm
⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket
⊙Maximum Platform Size
600 x 600mm
| Max. capacity | kgf | 50, 75, 100, 150, 200, 300, 500 | |
| Rated output Zoro balance | mV/ V mV/ V | 1.2 (Approx.) 0 ± 0.06 | |
| Accuracy class | D3 | C3, A5 | |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.03 0.01 0.03 0.04 0.015 | 0.02 0.01 0.017 0.014 0.011 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 400 ± 20 350 ± 3.5 ＞2,000 | |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -20 to +70 | |

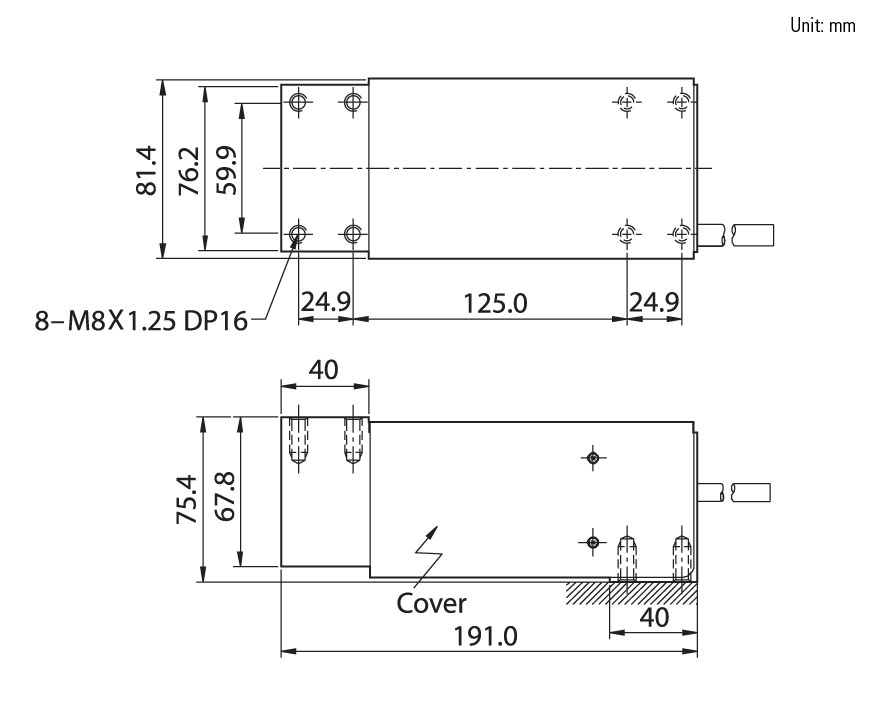

![BCM[2].jpg](../upload/201704/1491890595742953.jpg "1491890595742953.jpg")
