CAS CTS loadcells (500kg-5tf)
CAS load cell, CTS stainless steel canister load cell models: CTS-500L, CTS-1, CTS-2, CTS-3, CTS-5.
⊙FEATURES
Tension and compression load cell
Hermetically sealed
Stainless steel construction
⊙OPTIONS
Calibrated for tension or compression
High accuracy grade
Ex ia C T6e
⊙Material
Stainless Steel
⊙Cable
Braided shield 4-wire round cable with P.V.C-jacket
| Max. capacity | kgf | 500, 1tf,2tf,3tf,5tf | |
| Rated output Zoro balance | mV/ V mV/ V | 3.0 ± 0.003 0 ± 0.03 | |
| Accuracy class | A | B | |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.02 0.01 0.03 0.03 0.03 | 0.05 0.02 0.03 0.03 0.03 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 350 ± 3.5 350 ± 3.5 ＞2,000 | |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -30 to +80 | |

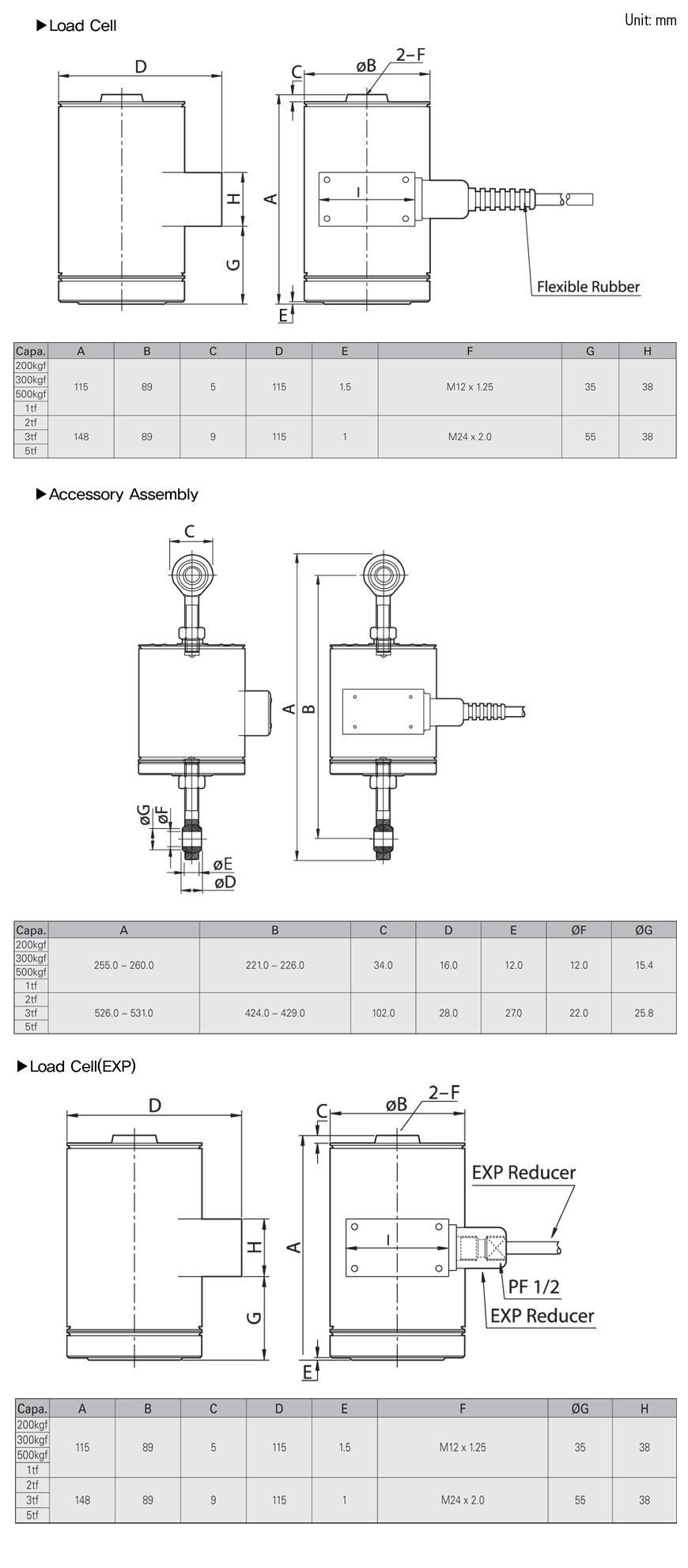

![CTS[3].jpg](../upload/201704/1491809172649318.jpg "1491809172649318.jpg")
