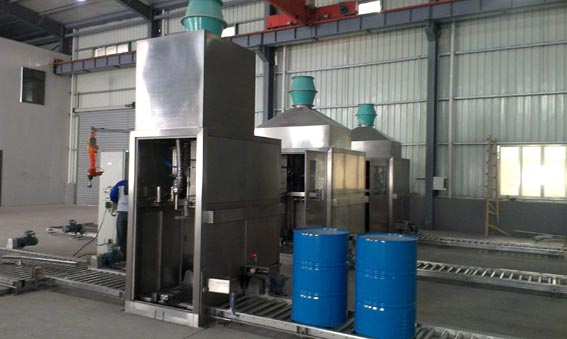

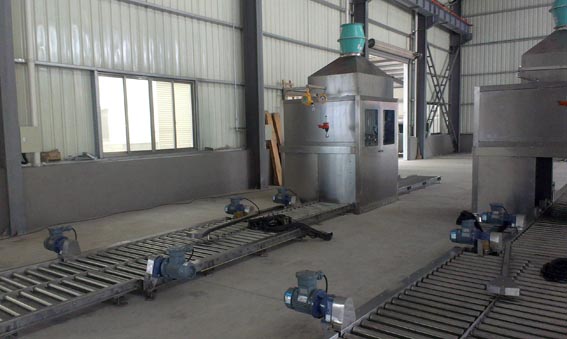

Full auto 200kg drum filling room

Automatic two-headed explosion-proof weighing filling line

The machine applicability:

The machine is suitable for products from low to high viscosity, can be used in the filling capacity from 50 l to 1000 l, accuracy is two over one thousand (depending on the specifications of the steel drum, product properties and feed pressure);Machine sealing and explosion-proof, with VAT automatically open, automatic positioning, automatic filling, automatic sealing, automatic output functions, such as nitrogen charging device and convulsions device to choose from.

Technical parameters:

1. The machine type: GFM - 200 KMS - AUTO;

2. The biggest weighing;300 kg;

3. The dividing value: 100 g;

4. The filling speed: 20-40 barrels/hours (depending on the specifications of the steel drum, product properties and feed pressure);

5. Canned precision: X (0.5) (0.2%);

6. Filling way: head/liquid level;

7. Voltage: 380 v, 3 p, 50/60 hz (customer specified)

8. Filling head number: 2

Filling system include:

- # SS304 stainless steel is completely sealed metal filling head integrated automatic open and two sets of gland system.

- filling at the bottom of the head with a pneumatic feeding spoon, avoid after filling, the liquid will drip into iron drum and transmission line;

- manual/peel/gross weight filling. Add filling automatic fast and slow;

- SS304 stainless steel metal hose connector, convenient operation and maintenance.

- automatic liquid/liquid surface filling, automatic filling head into the barrel with reset function

- the tories more weighing sensors and instrumentation systems;

- the weight of weighing platform, with sensors and overload protection system;

- with product contact part of all is the SS304 stainless steel and PTFE seal;

- after power, filling head by integrity the spring automatically shut down, prevent product dripping

- after filling, the filling head automatic reset and safety interlock systems

- the machine explosion protection system, the standard for Exp DIIBT4

Control system include:

The Siemens PLC/Omron control system;

- with the switch on/off, stop button, etc

- filling difference or no material automatic alarm system

Optional item:

- PLC and DCS communication and synchronous control;

- before and after explosion power transmission line;

- nitrogen charging device
