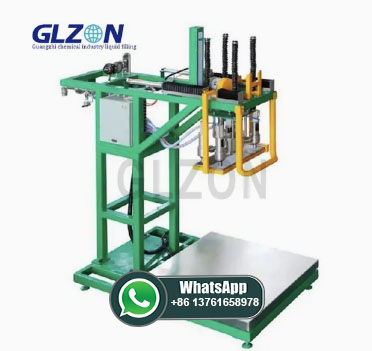

Single-Head Automatic Filling Machine for 1000kg Lubricating Oil

2025-05-13 16:17:21 glzon

Automatic Filling Machine

Basic Info.

Model NO.
GZM-1000-1PT
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Barrel Form
Pail, Can, Bottle, etc.
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings
Application
Food, Beverages, Daily Necessities, Chemicals
Suitable Material
Coatings, Inks, Paints, Asphalt, Glue, Lubricants
Transport Package
Wooden Case
Specification
1500*1300*1700mm
Trademark
GLZON
Origin
Shanghai

Product Description


Single-Head Automatic Filling Machine for 1000kg Lubricating Oil
Single-Head Automatic Filling Machine for 1000kg Lubricating OilSingle-Head Automatic Filling Machine for 1000kg Lubricating Oil
Product Description

Introduction

Liquid filling machine is a highly automated packaging equipment, whose main function is to automatically fill liquid materials into predetermined weights. The liquid filling machine can effectively prevent material overflow during the filling process, effectively prevent material pollution to the environment, and provide effective labor protection for operators. Its system works stably and reliably, with simple operation and precise filling. The filling machine mainly consists of a filling gun device, PLC system control part, weighing system, filling rack, conveying equipment, etc.
Single-Head Automatic Filling Machine for 1000kg Lubricating OilSingle-Head Automatic Filling Machine for 1000kg Lubricating Oil
Features
1.For the filling of square barrels and drums below 100kg, the system adopts programmable PLC control, with full Chinese guid- ance and easy operation;
2.The filling head extends into the barrel mouth and automatical- ly exits when filling is completed. If the filling head is not aligned with the barrel mouth, it will automatically return;
3.The filling gun is made with integral technology to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean;
4.The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications;
5.Equipped with a large and small ball width group and a double-stage filling gun, the four-stage filling design of large, medium, small and trace quantities makes filling more accurate;
6.Filling is prohibited without a bucket on the weighing platform, and differential pressure zero-time bucket collision protection is provided;
7.Net weight/gross weight (automatic tare for each barrel) Two filling methods are automatically selected;
8.One-click operation, easy to use; multiple windows display filling volume, number of barrels, cumulative volume and other information;
9.There is a signal indicator light for real-time display, and an automatic alarm if the deviation is exceeded;
10.It has good stability,reduces losses,saves costs,improves operating efficiency and reduces manual operation pressure.
Product Parameters

Single-Head Automatic Filling Machine for 1000kg Lubricating Oil
Product Parameters
ModelGZM-1000-1PT
Filling range200-1000kg
PowerAC220V±10%50hz
Air source0.5mpa
Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling accuracy0.02%
Speed(can/min)1-2 barrels (1000L)
Filling station1
Materialsus304/316
Installation Instructions
Main structure and working principle

1.Computer quantitative filling machine has feeding system, weighing system frame pneumatic control control system without power raceway and so on.

2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.

3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).

4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.

Single-Head Automatic Filling Machine for 1000kg Lubricating Oil

Single-Head Automatic Filling Machine for 1000kg Lubricating Oil


How to operate

1.During operation, as long as the empty barrel is installed on the empty barrel pipeline line, it will automatically stop and the nozzle device automatically places the empty barrel directly below the nozzle of the nozzle.

2.After entering the barrel mouth, the empty barrel is automatically tared, and then the specific gravity is determined accurately at two speeds.

3.The spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position.

4.The piping machine stops, the cap is placed manually, the capping machine is pulled down to cap, and the weight is completed.
Company Profile
Single-Head Automatic Filling Machine for 1000kg Lubricating Oil
Company Profile

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.

Our Advantages



Why choose us

1. Packaging solution
we provide professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you is good useful.

2. Pre-sale Service.
pre-sale service will provide by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.

3. After-sale service
we provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.

Free training course will be given to your technician at our factory site in Shanghai China.
Single-Head Automatic Filling Machine for 1000kg Lubricating Oil
Certifications
Single-Head Automatic Filling Machine for 1000kg Lubricating Oil
